  HOME>>PRODUCTS>>Vernier Caliper Series>>

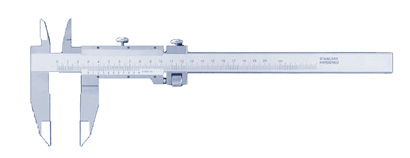

Vernier Calipers with Nib Style and Standard Jaws
(with Fine Adjustment)(Open Vernier)		 BACK>>


Features

Made of stainless steel.
The jaws have round measuring faces for accurate ID measurement.
Provided with a fine-adjustment carriage.
Long jaws for measuring hard-to-reach portions.

Technology Parameter
Measuring Range Order No Vernier reading Permissible
Error		 a mm b mm d mm e mm f mm
OD ID
0-300mm 10-300mm K41-564 0.02mm ±0.04mm 60 38 20 5 12
1 　 K41-564-1 0.02mm ±0.04mm 90 24 20 5 12
　 20-300mm K41-564-2 0.02mm ±0.04mm 100 45 24 10 18
　 　 K41-564-3 0.02mm ±0.04mm 125 45 24 10 18
　 10-300mm K41-565 0.05mm ±0.08mm 60 38 20 5 12
　 　 K41-565-1 0.05mm ±0.08mm 90 42 20 5 12
　 20-300mm K41-565-2 0.05mm ±0.08mm 100 45 24 10 18
　 　 K41-565-3 0.05mm ±0.08mm 125 45 24 10 18
0-400mm 20-400mm K41-566 0.02mm ±0.05mm 100 45 24 10 18
　 　 K41-566-1 0.02mm ±0.05mm 125 45 24 10 18
　 　 K41-566-2 0.02mm ±0.05mm 150 60 31 10 24
　 　 K41-567 0.05mm ±0.08mm 100 45 24 10 18
　 　 K41-567-1 0.05mm ±0.08mm 125 45 24 10 18
　 　 K41-567-2 0.05mm ±0.08mm 150 60 31 10 24
0-500mm 20-500mm K41-568 0.02mm ±0.05mm 100 60 31 10 24
　 　 K41-568-1 0.02mm ±0.05mm 150 45 24 10 18
　 　 K41-568-2 0.02mm ±0.05mm 200 60 31 10 24
　 　 K41-569 0.05mm ±0.08mm 100 60 31 10 24
　 　 K41-569-1 0.05mm ±0.08mm 150 45 24 10 18
　 　 K41-569-2 0.05mm ±0.08mm 200 60 31 10 24
0-600mm 20-600mm K41-570 0.02mm ±0.07mm 100 45 24 10 18
　 　 K41-570-1 0.02mm ±0.07mm 150 60 31 10 24
　 　 K41-570-2 0.02mm ±0.07mm 200 45 24 10 18
　 　 K41-571 0.05mm ±0.10mm 100 45 24 10 18
　 　 K41-571-1 0.05mm ±0.10mm 150 60 31 10 24
　 　 K41-571-2 0.05mm ±0.10mm 200 45 24 10 18
0-800mm 20-800mm K41-572 0.02mm ±0.07mm 150 45 24 10 18
　 　 K41-572-1 0.02mm ±0.07mm 200 60 31 10 24
　 　 K41-572-2 0.02mm ±0.07mm 250 60 31 10 24
　 　 K41-573 0.05mm ±0.10mm 150 45 24 10 18
　 　 K41-573-1 0.05mm ±0.10mm 200 60 31 10 24
　 　 K41-573-2 0.05mm ±0.10mm 250 60 31 10 24
0-1000mm 20-1000mm K41-574 0.02mm ±0.07mm 150 60 31 10 24
　 　 K41-574-1 0.02mm ±0.07mm 200 60 31 10 24
　 　 K41-575 0.05mm ±0.10mm 150 60 31 10 24
　 　 K41-575-1 0.05mm ±0.10mm 200 60 31 10 24
