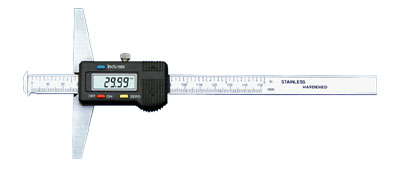

  HOME>>PRODUCTS>>Digital Caliper Series>>Digital Depth Gauges with a Hook BACK>>


Features

can measure groove width and position of a groove.
Power on/off.
Inch/mm conversion at any position.
Zero-setting at any position.
DAta output.
Technology Parameter
Measuring Range Order No Resolution Permissible Error L mm a mm Remarks
0-150mm£¨0-6") K23-131 0.01mm£¨.0005¡å£© ¡À0.03mm 232.5 100 Two-hook Miasuring
Face
¡¡ K23-131-1 0.01mm£¨.0005¡å£© ¡À0.03mm 232.5 150
0-200mm(0-8") K23-132 0.01mm£¨.0005¡å£© ¡À0.03mm 282.5 100
¡¡ K23-132-1 0.01mm£¨.0005¡å£© ¡À0.03mm 282.5 150
0-300mm(0-12") K23-133 0.01mm£¨.0005¡å£© ¡À0.04mm 382.5 100
¡¡ K23-133-1 0.01mm£¨.0005¡å£© ¡À0.04mm 382.5 150
