Features

Manual power on/off

Metric/Inch system interchange at any position

Zero setting at any position

With data output interface

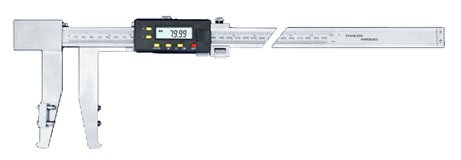

To measure the wear dimension of the automobile brake drum

Technology Parameter

Measuring Range	Order No	Resolution	Permissible Error	a mm	Remarks
20-300mm(.8"-12")	K13-163	0.01mm(.0005")	±0.05mm	85	With Deep Spindle for Position setting accessories Available
20-425mm(.8"-17.8")	K13-164	0.01mm(.0005")	±0.05mm	110
20-500mm(.8"-20")	K13-165	0.01mm(.0005")	±0.06mm	115
