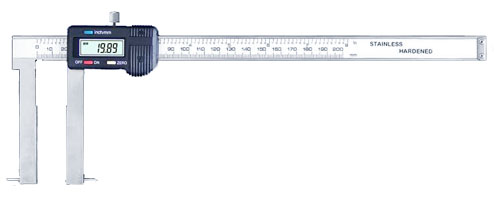

Cylinder Inside Groove Digital Caliper 		BACK>>


Features

Manual power on/off
Metric/Inch system interchange at any position
Zero setting at any position
With pointed jaws
Easy to measure the width of an outside groove


Technology Parameter
Measuring Range Order No Resolution Permissible Error a mm Remarks
24-150mm('.9"-6") K15-121 0.01mm(.0005¡å) ¡À0.04mm 30 µãÁ¿×¦ÐÍ
35-150mm(1.4"-6") K15-121-1 0.01mm(.0005¡å) ¡À0.05mm 60
50-150mm(2"-6") K15-121-2 0.01mm(.0005¡å) ¡À0.05mm 90
25-200mm(1"-8") K15-122 0.01mm(.0005¡å) ¡À0.04mm 40
40-200mm(1.6"-8") K15-122-1 0.01mm(.0005¡å) ¡À0.05mm 70
60-200mm(2.4"-8") K15-122-2 0.01mm(.0005¡å) ¡À0.05mm 100
30-300mm(1.2"-12") K115-123 0.01mm(.0005¡å) ¡À0.05mm 50
50-300mm(2"-8") K15-123-1 0.01mm(.0005¡å) ¡À0.06mm 80
60-300mm(2.4"-8") K15-123-2 0.01mm(.0005¡å) ¡À0.06mm 110
40-500mm(1.6"-20") K15-125 0.01mm(.0005¡å) ¡À0.06mm 90
60-500mm(2.4"-8") K15-125-1 0.01mm(.0005¡å) ¡À0.07mm 120
80-500mm(3.2"-8") K15-125-2 0.01mm(.0005¡å) ¡À0.07mm 150
