HOME>>PRODUCTS>>Digital
Caliper Series>>

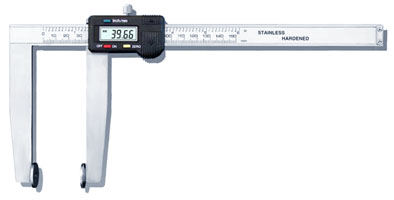

Plate Anvil Digital Calipers
with a Force Limit Device |
BACK>> |
| |
|
|
| |
|
 |
| Manual power on/off |
| Metric/Inch system interchange
at any position |
| Zero setting at any position |
| With data output interface |
| To measure the half-soft board
(foamed plastic,sponge,plank) |
| |
|
| |
| Measuring Range |
Order
No |
Resolution |
Permissible Error |
a
mm |
Remarks |
| 0-150mm£¨0-6¡å£© |
K12-141
|
0.01mm(.0005¡å) |
¡À0.05mm |
50 |
Plate Anvil |
| 0-150mm£¨0-6¡å£© |
K12-141-1
|
0.01mm(.0005¡å) |
¡À0.05mm |
100 |
| 0-200mm£¨0-8¡å£© |
K12-142
|
0.01mm(.0005¡å) |
¡À0.05mm |
80 |
| 0-200mm£¨0-8¡å£© |
K12-142-1 |
0.01mm(.0005¡å) |
¡À0.05mm |
150 |
| 0-300mm£¨0-12¡å£© |
K12-143 |
0.01mm(.0005¡å) |
¡À0.07mm |
120 |
| 0-500mm£¨0-20¡å) |
K12-144 |
0.01mm(.0005¡å) |
¡À0.09mm |
150 |
|
|
