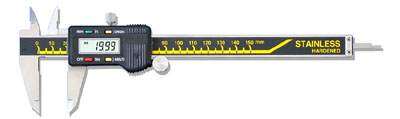

  HOME>>PRODUCTS>>Digital Caliper Series>>Four-key Digital Calipers ::::....... BACK>>


Features

Power on/off.
Zero-setting at any position.
Units conversion.
Data output.
MODE
Data hold.
Speedy display mode (during which data can be hold.)
Fast tracing MAX / MIN value during measurement.
TOL
Tolerance setting and OK(GO)or ¡ÀNG discrimination.
HOLD
Data hold.
ABS
Absolute and incremental measurement mode switching.
Technology Parameter
Measuring Range mm/in
 Order No
 Resolution mm/in Permissible Error Remarks
0-150mm£¨0-6¡å£©
 K11-101N 0.01mm£¨.0005¡å £© ¡À0.03mm With depth bar(flat or round¦Õ1.6)
0-200mm£¨0-8¡å£©
 K11-102N 0.01mm£¨.0005¡å £© ¡À0.03mm
0-300mm£¨0-12¡å£©
K11-103N 0.01mm£¨.0005¡å £© ¡À0.04mm With depth bar
