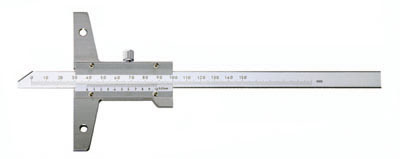

首 页>>产品展厅>>常规游标卡尺>>深度游标卡尺(带孔)
返回>> |
| |
................................................................................................................. |
|
|
 |
| 不锈钢制造 |
| 测量深度尺寸 |
| 测量台阶尺寸 |
| |
| |
| |
| ................................................................................................................. |
|
测量范围 |
货
号 |
分辨力 |
允许误差 |
a mm |
| 0-150 mm |
DA-02-011 |
0.02 mm |
±0.03 mm |
100 |
0-200 mm
|
DA-02-021 |
0.02 mm |
±0.03 mm |
100 |
0-300 mm
|
DA-02-031 |
0.02 mm |
±0.04 mm |
100 |
| 0-500 mm |
DA-02-051 |
0.02 mm |
±0.05 mm |
100 |
| 0-1000 mm |
DA-02-101 |
0.02 mm |
±0.07 mm |
100 |
|
| |
|
|
|
