  HOME>>PRODUCTS>>Vernier Caliper Series>>

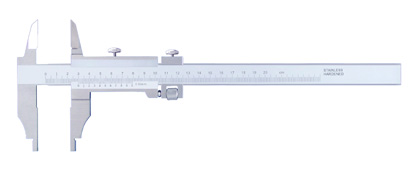

Vernier Calipers with Nib Style and Sharp Edged Jaws (with FineAdjustment)(Mono-block Vernier)		 BACK>>


Features

Made of stainless steel.
The jaws have round measuring faces for accurate inside measurement.
Provided with a fine-adjustment carriage
Long jaws for measuring hard-to-reach portions.

Technology Parameter
Measuring Range Order No Vernier reading Permissible
Error		 a mm b mm d mm e mm f mm
OD ID
0-300mm 10-300mm 141-180 0.02mm ±0.04mm 60 38 20 5 12
  　 K41-180-1 0.02mm ±0.04mm 90 24 20 5 12
　 20-300mm K41-180-2 0.02mm ±0.04mm 100 45 24 10 18
　 　 K41-180-3 0.02mm ±0.04mm 125 45 24 10 18
　 10-300mm K41-181 0.05mm ±0.08mm 60 38 20 5 12
　 　 K41-181-1 0.05mm ±0.08mm 90 42 20 5 12
　 20-300mm K41-181-2 0.05mm ±0.08mm 100 45 24 10 18
　 　 K41-181-3 0.05mm ±0.08mm 125 45 24 10 18
0-400mm 20-400mm K41-182 0.02mm ±0.05mm 100 45 24 10 18
　 　 K41-182-1 0.02mm ±0.05mm 125 45 24 10 18
　 　 K41-182-2 0.02mm ±0.05mm 150 60 31 10 24
　 　 K41-183 0.05mm ±0.08mm 100 45 24 10 18
　 　 K41-183-1 0.05mm ±0.08mm 125 45 24 10 18
　 　 K41-183-2 0.05mm ±0.08mm 150 60 31 10 24
0-500mm 20-500mm K41-184 0.02mm ±0.05mm 100 60 31 10 24
　 　 K41-184-1 0.02mm ±0.05mm 150 45 24 10 18
　 　 K41-184-2 0.02mm ±0.05mm 200 60 31 10 24
　 　 K41-185 0.05mm ±0.08mm 100 60 31 10 24
　 　 K41-185-1 0.05mm ±0.08mm 150 45 24 10 18
　 　 K41-185-2 0.05mm ±0.08mm 200 60 31 10 24
0-600mm 20-600mm K41-186 0.02mm ±0.07mm 100 45 24 10 18
　 　 K41-186-1 0.02mm ±0.07mm 150 60 31 10 24
　 　 K41-186-2 0.02mm ±0.07mm 200 45 24 10 18
　 　 K41-187 0.05mm ±0.10mm 100 45 24 10 18
　 　 K41-187-1 0.05mm ±0.10mm 150 60 31 10 24
　 　 K41-187-2 0.05mm ±0.10mm 200 45 24 10 18
0-800mm 20-800mm K41-188 0.02mm ±0.07mm 150 45 24 10 18
　 　 K41-188-1 0.02mm ±0.07mm 200 60 31 10 24
　 　 K41-188-2 0.02mm ±0.07mm 250 60 31 10 24
　 　 K41-189 0.05mm ±0.10mm 150 45 24 10 18
　 　 K41-189-1 0.05mm ±0.10mm 200 60 31 10 24
　 　 K41-189-2 0.05mm ±0.10mm 250 60 31 10 24
0-1000mm 20-1000mm K41-190 0.02mm ±0.07mm 150 60 31 10 24
　 　 K41-190-1 0.02mm ±0.07mm 200 60 31 10 24
　 　 K41-191 0.05mm ±0.10mm 150 60 31 10 24
　 　 K41-191-1 0.05mm ±0.10mm 200 60 31 10 24
