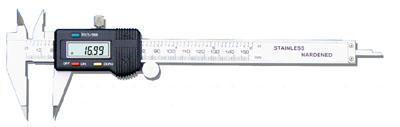

  HOME>>PRODUCTS>>Digital Caliper Series>>Point Digital Calipers ::::....... BACK>>


Features

Power on/off.
Inch/mm conversion at any position.
Zero-setting at any position.
Data output.
The narrow tip jaws fit into very small grooves and tracks,making many previously difficult outside measurements far easier to obtain.
Technology Parameter
Measuring Range mm/in
 Order No
 Resolution mm/in Permissible Error Remarks
0-100mm£¨0-4")
K11-200 0.01mm£¨.0005¡å £© ¡À0.03mm With depth bar
0-150mm£¨0-6¡å£©
 K11-201 0.01mm£¨.0005¡å £© ¡À0.03mm
0-200mm£¨0-8¡å£©
K11-202 0.01mm£¨.0005¡å £© ¡À0.03mm
0-300mm£¨0-12¡å£© K11-203 0.01mm£¨.0005¡å £© ¡À0.04mm
