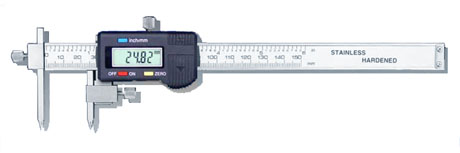

Centerline Digital Calipers with Conical Points  		BACK>>


Features

Power on/off.
Zero-setting at any position.
Units conversion.
Data output.
Center distance over £¾¦µ1 between two
holes can be obtained by adjusting the length of a measuring spindle on the left and moving the slider.
Distance between a plane and a hole can also be obtained.
echnology Parameter
Measuring Range Order No Resolution Permissible Error
5-150mm£¨.2-6¡å£© K19-111 0.01mm(.0005¡å ) ¡À0.05mm
10-150mm£¨.4-6¡å£© K19-111-1 0.01mm(.0005¡å ) ¡À0.05mm
5-200mm£¨.2-8¡å£© K19-112 0.01mm(.0005¡å ) ¡À0.07mm
10-200mm£¨.4-8¡å£© K19-112-1 0.01mm(.0005¡å ) ¡À0.07mm
5-300mm£¨.2-12¡å£© K19-113 0.01mm(.0005¡å ) ¡À0.09mm
10-300mm£¨.4-12¡å£© K19-113-1 0.01mm(.0005¡å ) ¡À0.09mm
5-500mm£¨.2-20¡å£© K19-115 0.01mm(.0005¡å ) ¡À0.09mm
10-1000mm£¨.4-40¡å£© K19-120 0.01mm(.0005¡å ) ¡À0.20mm
20-1000mm£¨.8-40¡å£© K19-120-1 0.01mm(.0005¡å ) ¡À0.20mm
