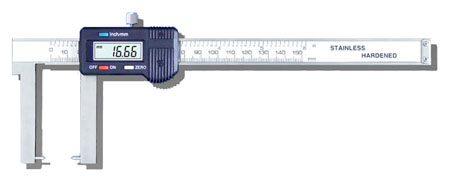

Cylinder Outside Groove Digital Caliper		 BACK>>


Features

Manual power on/off
Metric/Inch system interchange at any position
Zero setting at any position
With pointed jaws
Easy to measure the width of an outside groove

Technology Parameter
Measuring Range Order No Resolution Permissible Error a mm
0-150mm£¨0-6¡å ) K14-111 0.01mm(.0005¡å ) ¡À0.03mm 40
¡¡ K14-111-1 0.01mm(.0005¡å ) ¡À0.04mm 70
¡¡ K14-111-2 0.01mm(.0005¡å ) ¡À0.04mm 100
0-200mm(0-8¡å ) K14-112 0.01mm(.0005¡å ) ¡À0.04mm 50
¡¡ K14-112-1 0.01mm(.0005¡å ) ¡À0.04mm 80
¡¡ K14-112-2 0.01mm(.0005¡å ) ¡À0.04mm 110
0-300mm(0-12¡å ) K14-113 0.01mm(.0005¡å ) ¡À0.04mm 60
¡¡ K14-113-1 0.01mm(.0005¡å ) ¡À0.05mm 100
¡¡ K14-113-2 0.01mm(.0005¡å ) ¡À0.05mm 150
0-500mm(0-20¡å ) K14-115 0.01mm(.0005¡å ) ¡À0.06mm 100
¡¡ K14-115-1 0.01mm(.0005¡å ) ¡À0.06mm 150
¡¡ K14-115-2 0.01mm(.0005¡å ) ¡À0.06mm 200
