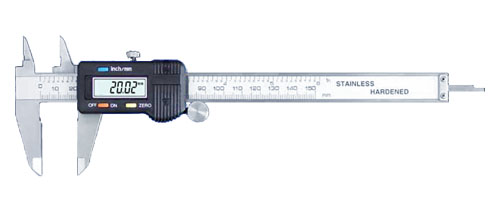

Digital Calipers with Upper Jaws in One Direction 		BACK>>


Features


Manual power on/off.
Metric/inch system interchange at any position.
Zero setting at any position.
With data output interface.
To measure the step distance on the same surface and in the same direction.
To measure the step distance in the same direction but on different surfaces.

Technology Parameter
Measuring Range mm/in
 Order No
 Resolution mm/in Permissible Error Remarks
0-150mm£¨0-6¡å£©
 K12-211 0.01mm£¨.0005¡å£© ¡À0.03mm With upper jaws in one direction With one long jaw and one shot jaw
0-200mm£¨0-8¡å£©
 K12-212 0.01mm£¨.0005¡å£© ¡À0.03mm
0-300mm£¨0-12¡å£©
K12-213 0.01mm£¨.0005¡å£© ¡À0.04mm
