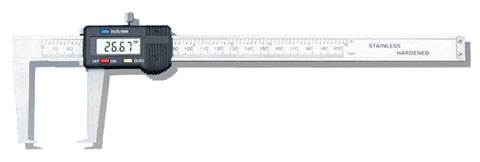

  HOME>>PRODUCTS>>Digital Caliper Series>>Outside Groove Digital Caliper BACK>>


Features

Can measure the diameter of outside groove of a workpiece.
Power on/off.
Units conversion.
Zero-setting at any position.


Technology Parameter
Measuring Range Order No Resolution Permissible Error a mm
0-150mm£¨0-6¡å ) K14-101 0.01mm(.0005¡å ) ¡À0.03mm 40
¡¡ K14-101-1 0.01mm(.0005¡å ) ¡À0.04mm 70
¡¡ K14-101-2 0.01mm(.0005¡å ) ¡À0.04mm 100
0-200mm(0-8¡å ) K14-102 0.01mm(.0005¡å ) ¡À0.04mm 50
¡¡ K14-102-1 0.01mm(.0005¡å ) ¡À0.04mm 80
¡¡ K14-102-2 0.01mm(.0005¡å ) ¡À0.04mm 110
0-300mm(0-12¡å ) K14-103 0.01mm(.0005¡å ) ¡À0.04mm 60
¡¡ K14-103-1 0.01mm(.0005¡å ) ¡À0.05mm 100
¡¡ K14-103-2 0.01mm(.0005¡å ) ¡À0.05mm 150
0-500mm(0-20¡å ) K14-105 0.01mm(.0005¡å ) ¡À0.06mm 100
¡¡ K14-105-1 0.01mm(.0005¡å ) ¡À0.06mm 150
¡¡ K14-105-2 0.01mm(.0005¡å ) ¡À0.06mm 200
