  HOME>>PRODUCTS>>Digital Caliper Series>>Long Jaw Inside Digital Caliper BACK>>


Features

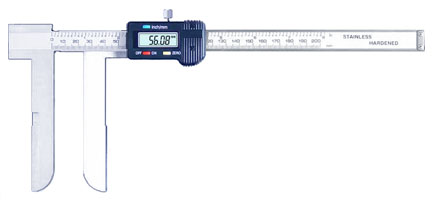

With long jaws, it's easy to obtain the diameter of deep hole.




Technology Parameter
Measuring Range
Order No
 Resolution Permissible Error a mm Remarks
15-150mm£¨.6"-6")
K13-101
0.01mm(.0005¡å) ¡À0.04mm 60 Long Jaw Type
20-150mm(.8"-6")
K13-101-1
 0.01mm(.0005¡å) ¡À0.04mm 90
25-150mm(1"-6")
K13-101-2
 0.01mm(.0005¡å) ¡À0.04mm 150
18-200mm(.8"-8")
K13-102
0.01mm(.0005¡å) ¡À0.04mm 75
22-200mm(.9"-8")
K13-102-1
 0.01mm(.0005¡å) ¡À0.04mm 100
25-200mm(1"-8")
K13-102-2
 0.01mm(.0005¡å) ¡À0.04mm 150
20-300mm(.8"-12")
K13-103
0.01mm(.0005¡å) ¡À0.05mm 90
22-300mm(.9"-12")
K13-103-1
 0.01mm(.0005¡å) ¡À0.05mm 120
25-300mm(1"-12")
K13-103-2
 0.01mm(.0005¡å) ¡À0.05mm 150
22-500mm(.9"-20")
K13-105
0.01mm(.0005¡å) ¡À0.06mm 100
25-500mm(1"-20")
K13-105-1
 0.01mm(.0005¡å) ¡À0.06mm 150
35-500mm(1.4"-20")
K13-105-2
 0.01mm(.0005¡å) ¡À0.06mm 200
